Height-Adjustable Patient Monitor Cart | BYPMLU007
Custom medical cart configurations
These previous configurations show how a medical trolley can bring displays, trays, holders and storage together. Use them as a starting point for your patient monitor cart: share your equipment model and daily workflow so we can review a suitable arrangement.

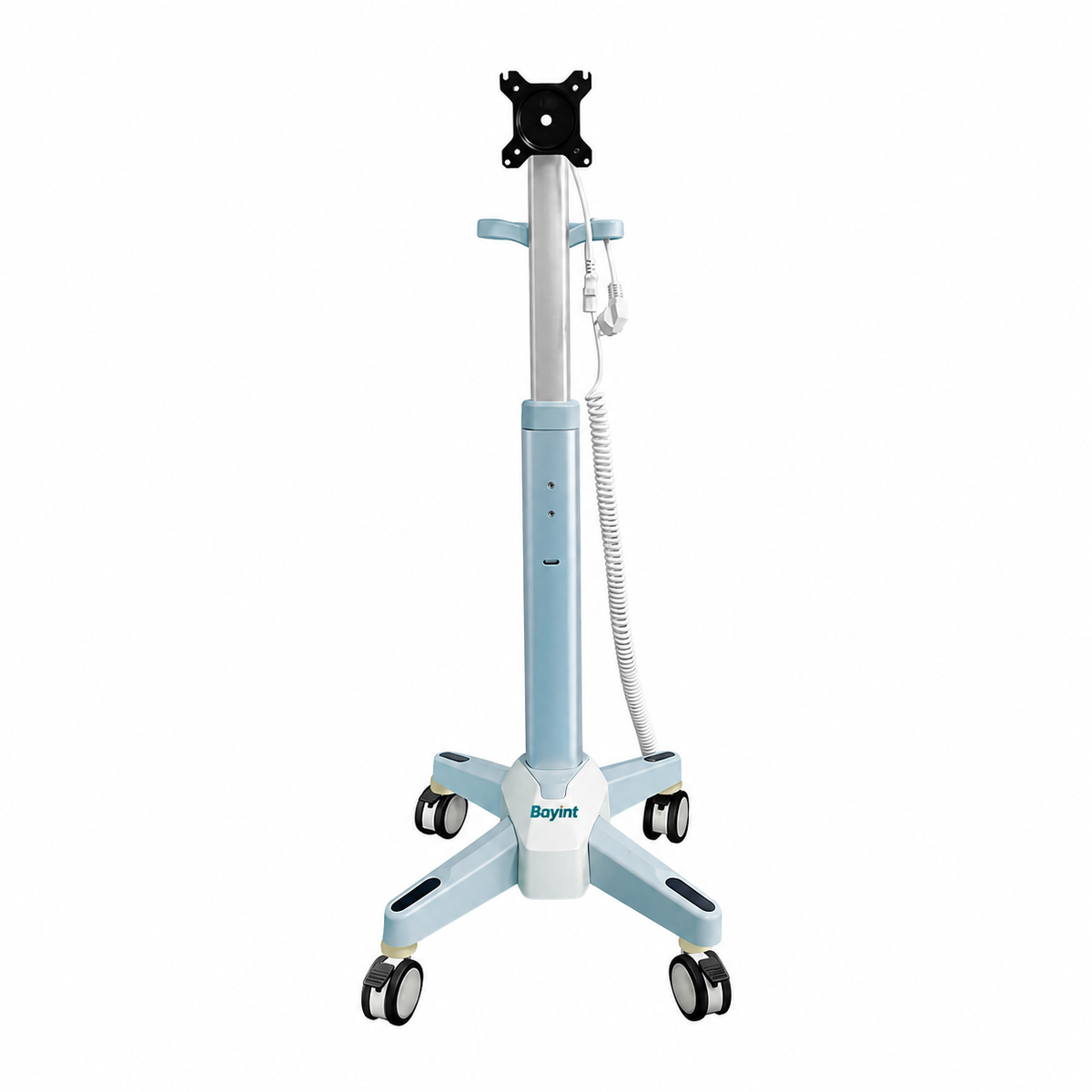

Modular accessories for your patient monitor cart
Choose compatible monitor mounts, baskets, drawers, shelves and keyboard trays for your setup. Power modules and alternative base arrangements can be discussed where required. We review mounting, equipment weight and available space together, then list the selected components in your quotation.
Medical cart storage options

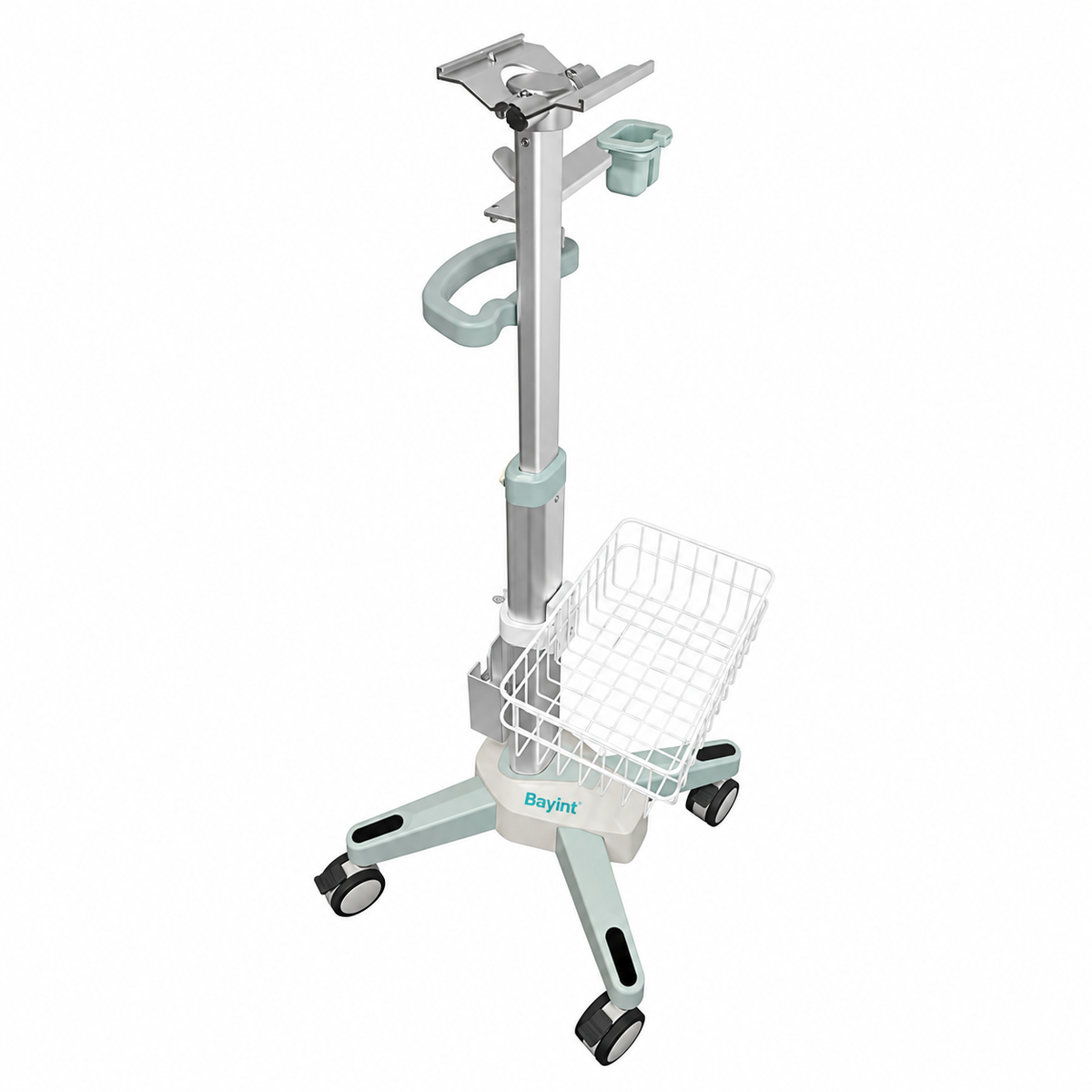

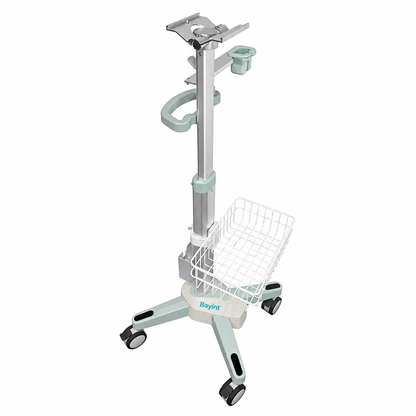

Choose storage around the supplies you need to carry. Configure your patient monitor cart with a metal wire basket or a transparent acrylic basket to keep everyday essentials together.
The photos show the metal basket’s open wire design and the acrylic basket’s solid, translucent sides. Tell us what you need to store so we can review the basket size and mounting position for your medical cart.
Fit your medical cart to your equipment
For a tablet ultrasound cart configuration, send us the device model, weight and mounting-point dimensions, together with a photo or dimensions of your probe. We can review a suitable fit and an accessible position for everyday use.
Plan the space for your medical cart
Share the complete equipment weight and the clearance available around beds, doorways and work areas. We can review the base configuration before production. Allow room for the casters and accessories beyond the wheel-centre measurements shown.

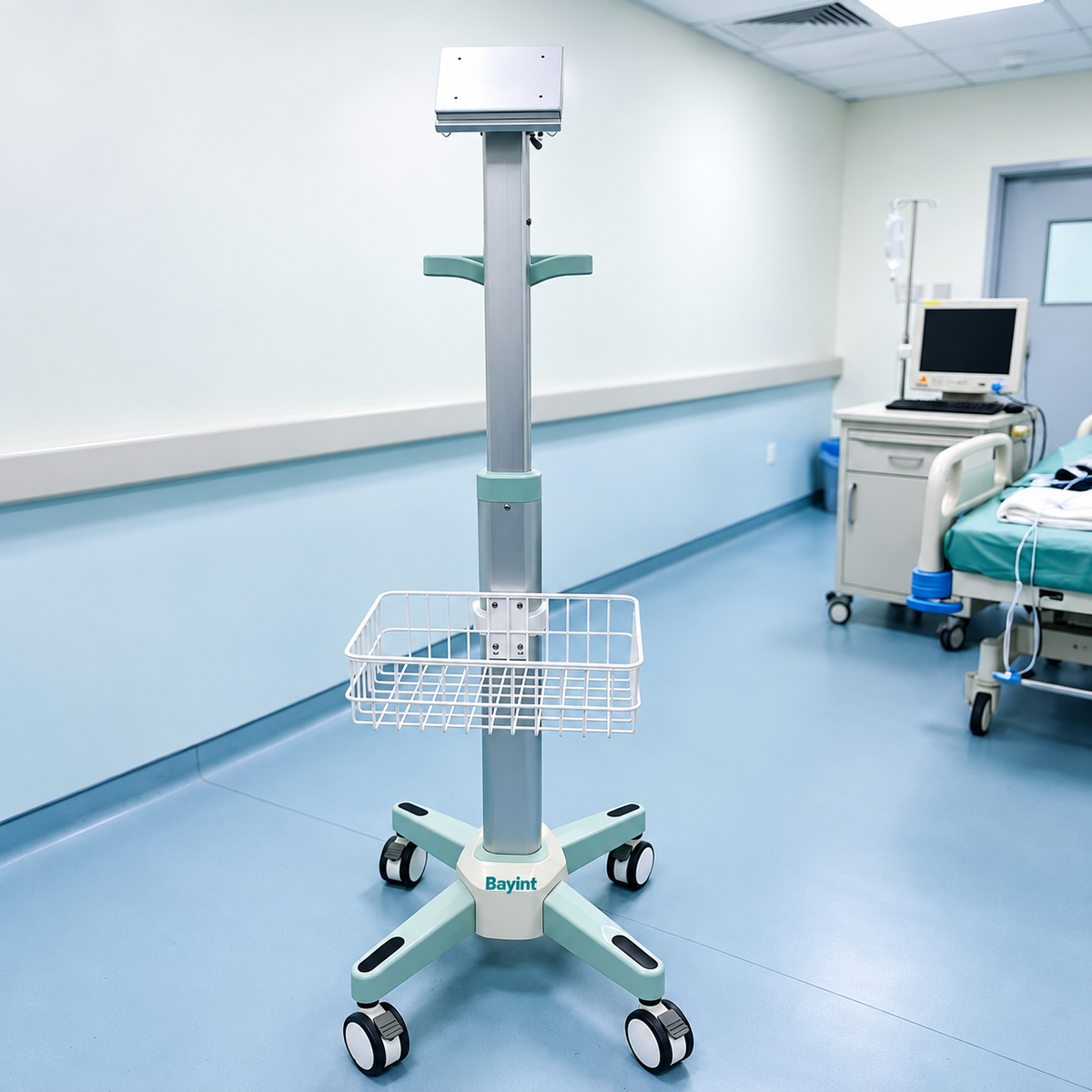

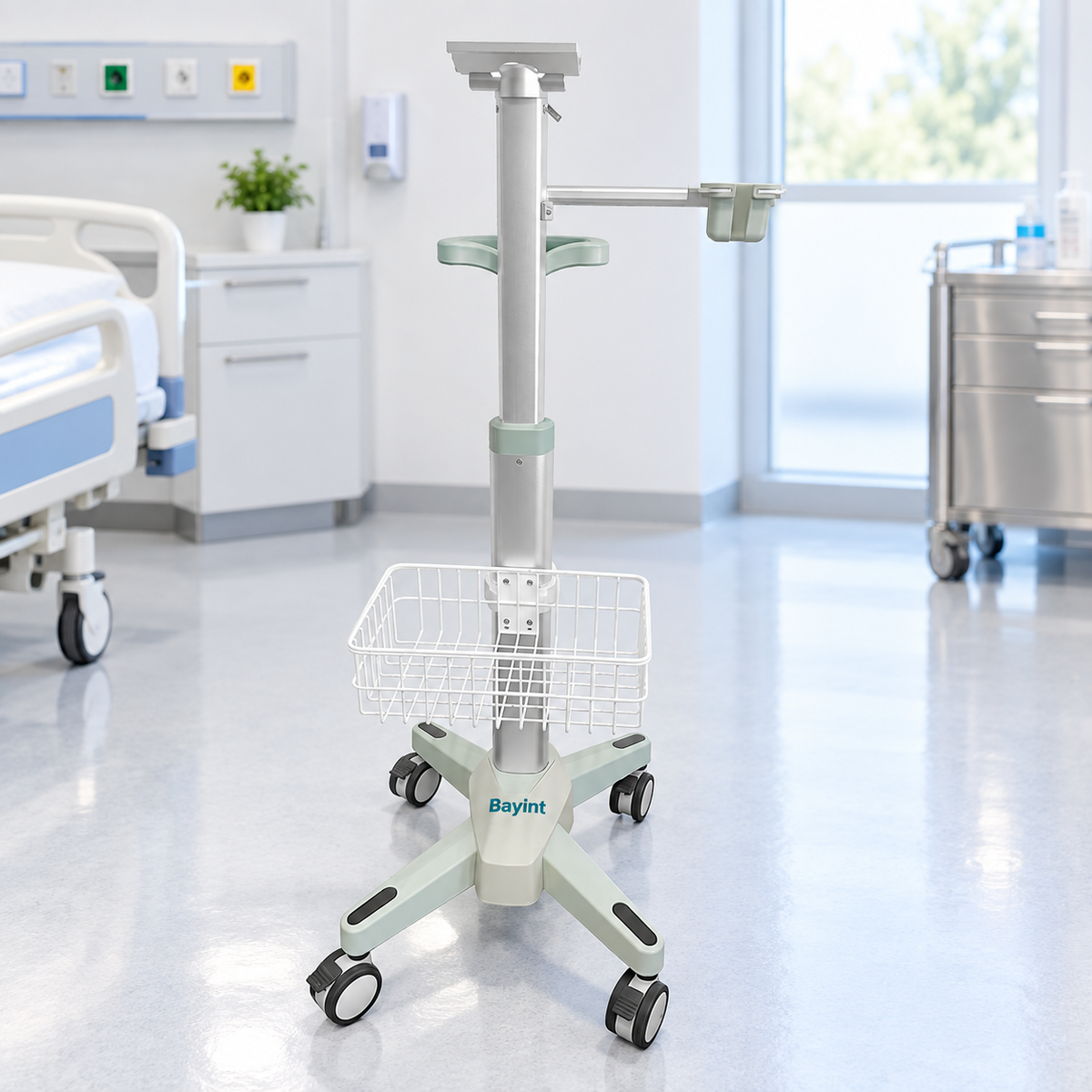

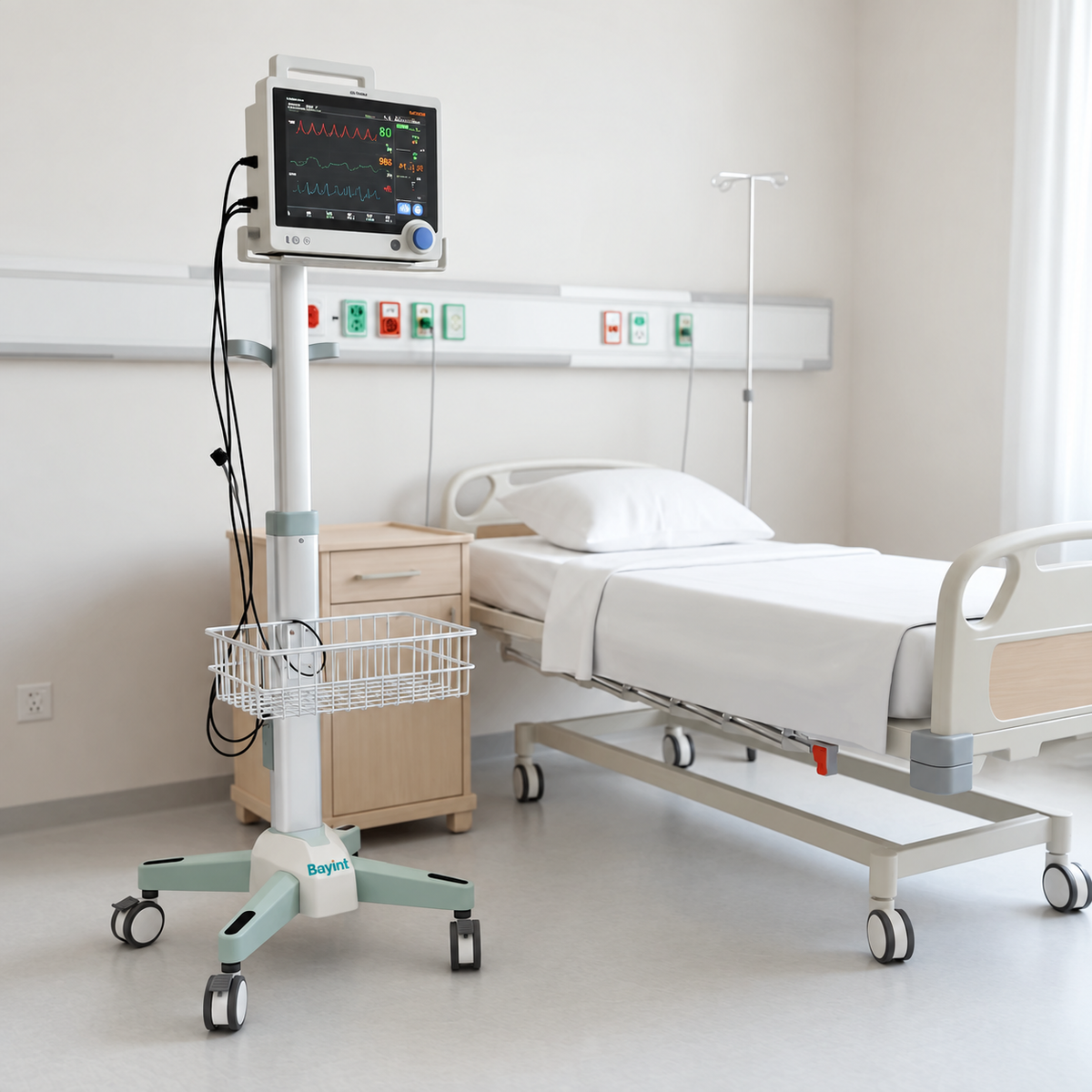

A patient monitor trolley for bedside use
Keep a compatible patient monitor and essential accessories together beside the bed or in a treatment room. Adjustable platform height helps position the display for staff, while optional storage keeps supplies within reach. Check access around the bed and the space needed to move the fully configured cart.

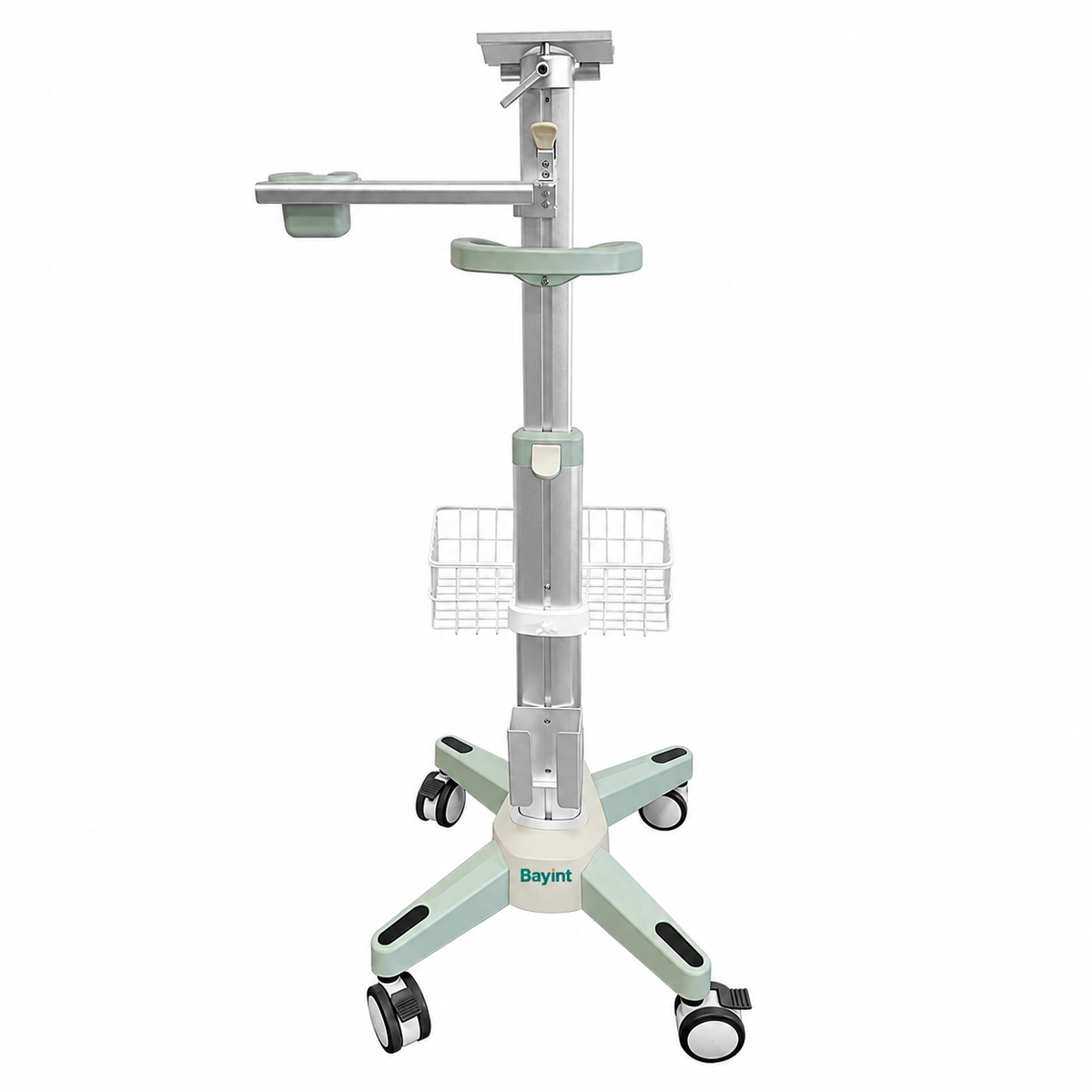

Patient monitor cart dimensions and adjustment
The device platform adjusts manually from 100 to 120 cm above the floor. The reference overall footprint is 45 × 41 cm; wheel-centre spacing is a separate measurement of 41 × 37.5 cm. Allow extra clearance for the device, accessories and any extended mouse tray.
BYPMLU007 patient monitor cart specifications
Use these patient monitor cart specifications to check equipment fit. Your quotation confirms the selected mount, accessories and base configuration.
| Model | BYPMLU007 |
|---|---|
| Materials | Aluminium alloy, steel and modified engineering plastics |
| Overall dimensions (L × W × H) | 45 × 41 × 100–120 cm, depending on height setting |
| Device platform height | 100–120 cm above the floor |
| Height adjustment | Manual; 20 cm travel |
| Device mounting load | 3–7 kg; match the mount to the equipment |
| Tilt adjustment | 45° |
| Mounting hole pattern | 6.2 × 8.5 cm; custom patterns available |
| Base wheel-centre spacing | Standard: 41 × 37.5 cm; extended option: 55 × 51 cm |
| Optional all-in-one bracket | 13 cm height adjustment; load setting configured before dispatch |

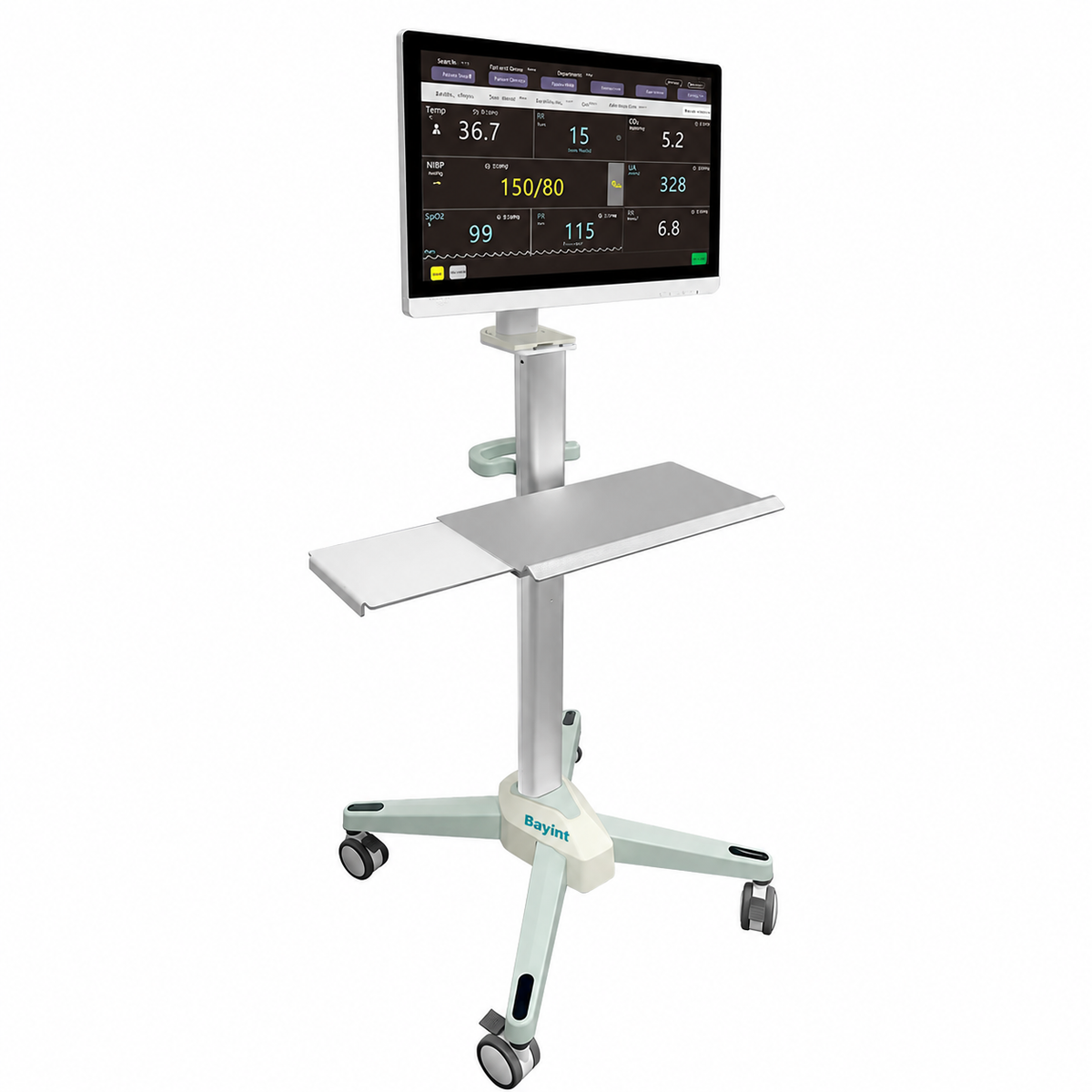

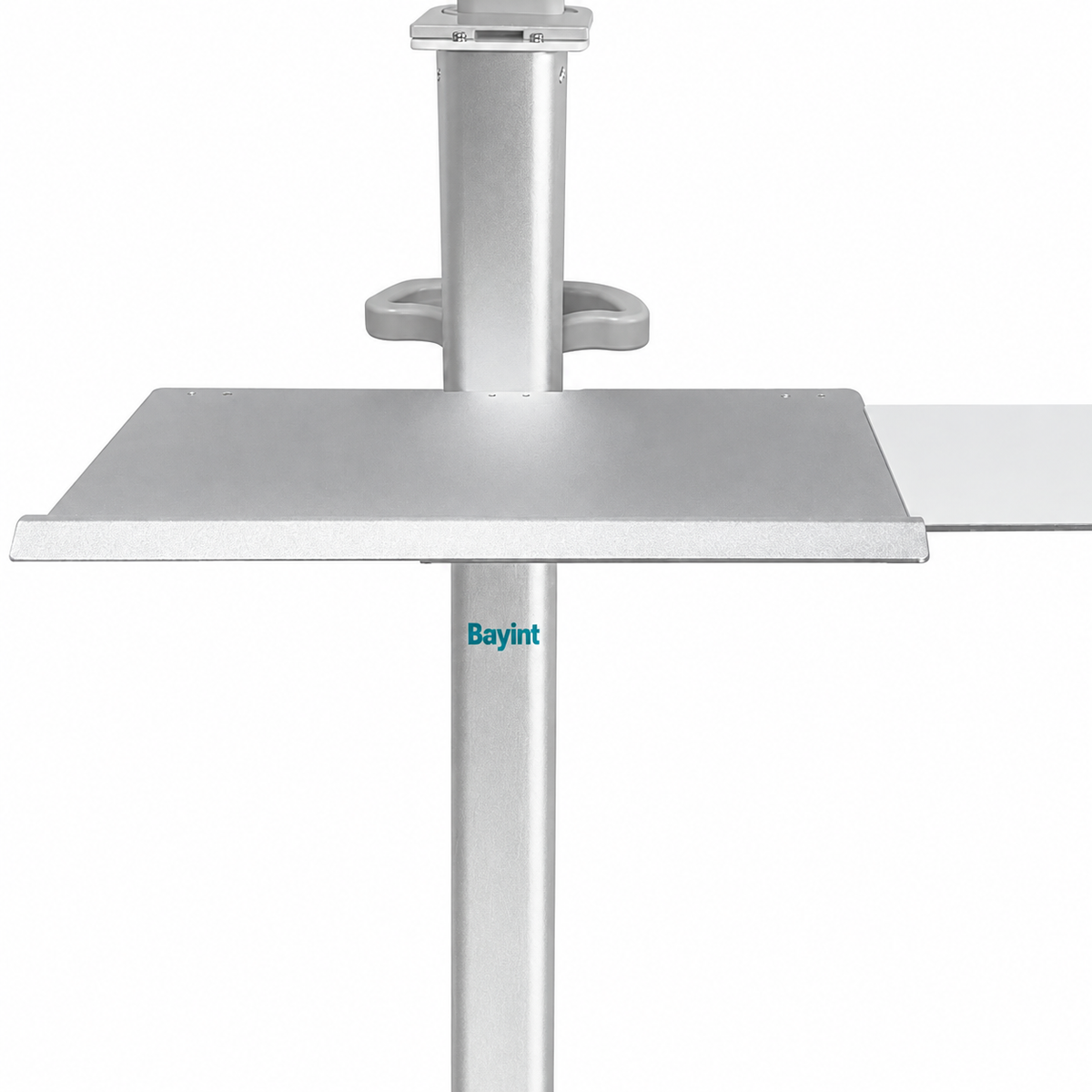

| Optional keyboard tray | Custom size; mouse platform extends to the left or right |
| Casters | 7.62 cm (3-inch) twin-wheel casters; four-wheel brakes |
| Net / gross weight | ≤8.2 kg / ≤11.5 kg |
Medical cart production and batch assembly
Our production photographs show cart frames and workstations being assembled in batches. For a multi-unit project, confirm one configuration and accessory list before production so each cart follows the same agreed setup. Share your quantity and required delivery date when requesting a production schedule.
Medical cart packing and dispatch
The factory photograph shows packed cartons alongside assembled medical carts. Tell us the destination and any receiving restrictions so we can confirm the packing arrangement, shipment dimensions and dispatch timing for your order. Shipping costs are quoted separately from the EXW product price.
